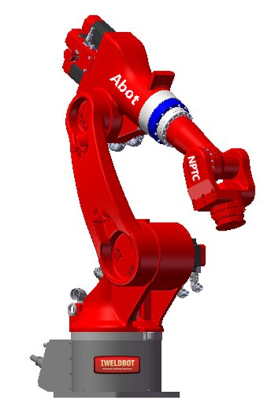

ABOT 2380

Six-Axis Robot , Loading Ability (KG) : 80

Usage

  • Structure Optimization Algorithm Adapt to different types of robots
  • Modular functions to adapt to various applications
  • 8-axis control, can realize auxiliary axis (walking axis, positioning control
  • Precision motor can run multiple loops.
  • Embedded Bus type, simple and extended functions.
  • 48x32 input and output points, edit PLC online
  • All kinds of robot process functions, simplify programming and operation.
  • TCP function, weld trace function.
  • Security module structure, durable, and highly reliable.

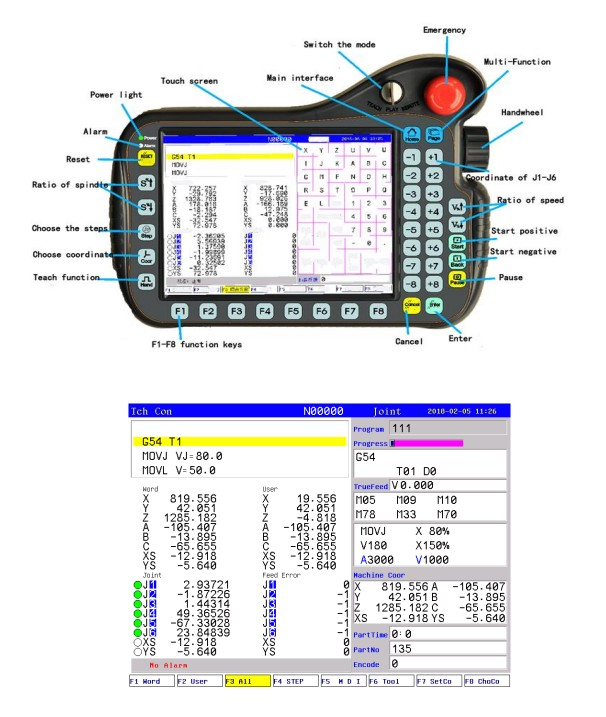

Programming Pendant

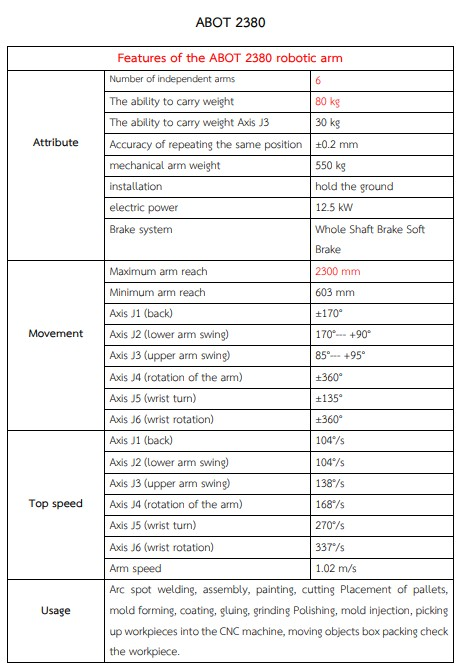

 Technical data

                    Axis                        Six-Axis Robot + Two auxiliary axis

                    Controller             8 inch TFT-LCD, touch operation, mode switch, safe switch, emergency button.

                    Motor                     Bus absolute type.

                    Connection           1) 48x32 input และ output point

                                                     2) There are 2 analog channels 0-10V.

                                                     3) 1 ช่อง สำหรับ Quadrature Input ของ Encoder

                                                     4) 6 ช่องสำหรับ Output Brake Motor

                                                     5) Special Terminal for connecting the robot.

                    Operation             Teach, Reappear, Remote

                    Program                Keyboard, Teach, Technique

                    Movement            point to point, straight, curved

                    PLC                          Ladder graph,8000 steps

                    Alarm                     Emergency, Driver alarm, Safety maintenance, Arc malfunction, coordinate system abnormal.

                    การประยุกต์ใช้งาน    Handling, Welding, Spraying, Palletizing, Cutting, Polishing, Casting and so on.
